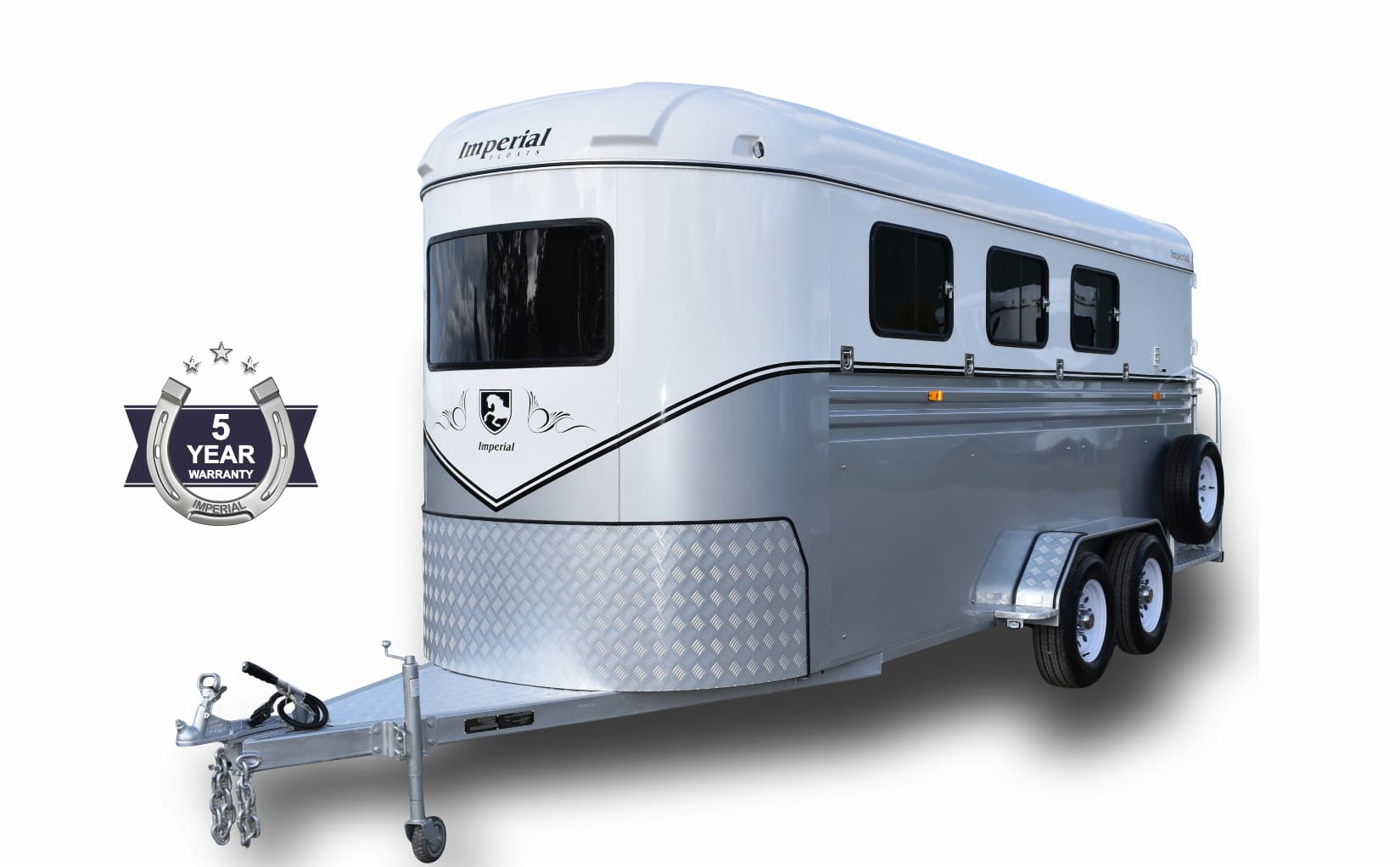

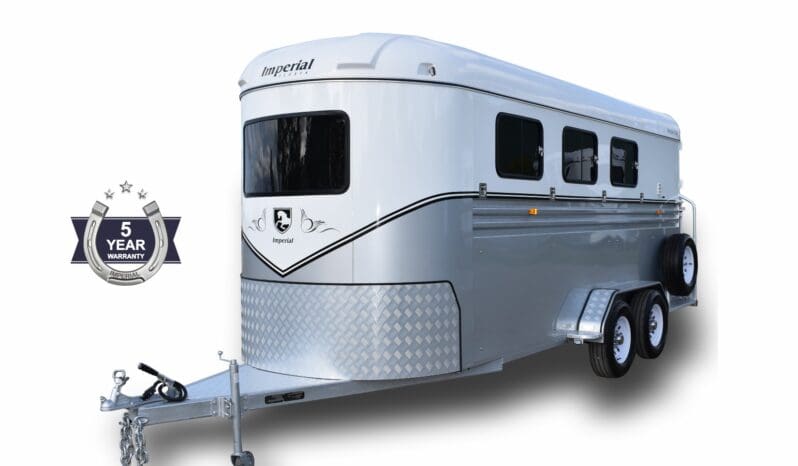

Imperial 4HAL Classic 2024
- Fibreglass Floor
- Checkerplate Nose
- Checkerplate Drawbar
- Sliding Windows
- Rear Barn Door
- BBQ / Tool Box
The Four Horse Angle load float” is a very popular 4 horse angle load horse float. Due to its size and weight, it is deliberately simple in its design yet extremely functional to give you maximum carrying capacity whilst retaining the Imperial air of elegance and style. It does not miss out on any of the important features of our other floats including fully enclosed and lockable with swing-out barn doors and fixed stallion head dividers, pop out saddle rack, fully padded dividers, 3-way pop-up air vents, four-wheel electric brakes with oversized axels and safety breakaway on roller rocker load sharing suspension.
| TARE (KG): | 1700 | BAY LENGTH 1: | 2350 |
| ATM (KG): | 3500 | BAY LENGTH 2: | 2400 |
| CARRYING CAPACITY (KG): | 1800 | BAY LENGTH 3: | 2400 |
| INT LENGTH (MM): | 5360 | BAY LENGTH 4: | 2300 |
| EXT LENGTH (MM): | 6820 | BAY WIDTH 1: | 680 |
| INT WIDTH (MM): | 1830 | BAY WIDTH 2: | 730 |
| EXT WIDTH (MM): | 2300 | BAY WIDTH 3: | 730 |
| INT HEIGHT (MM): | 2200 | BAY WIDTH 4: | 665 |
| EXT HEIGHT (MM): | 2720 | AXEL SIZE (MM): | 50x50 |
| | DRUM SIZE (MM/Inch): | 12 |
