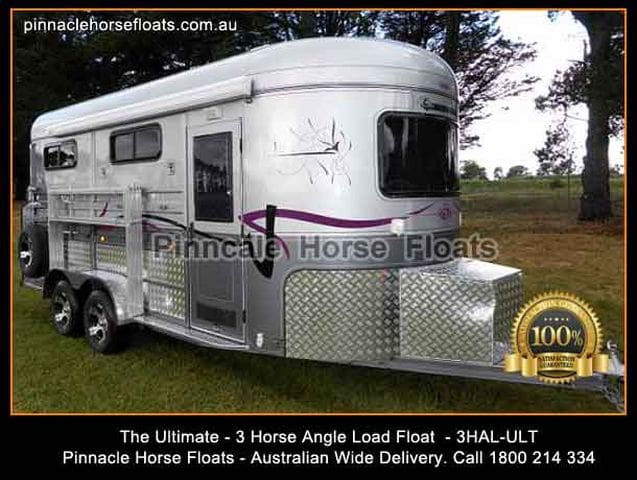

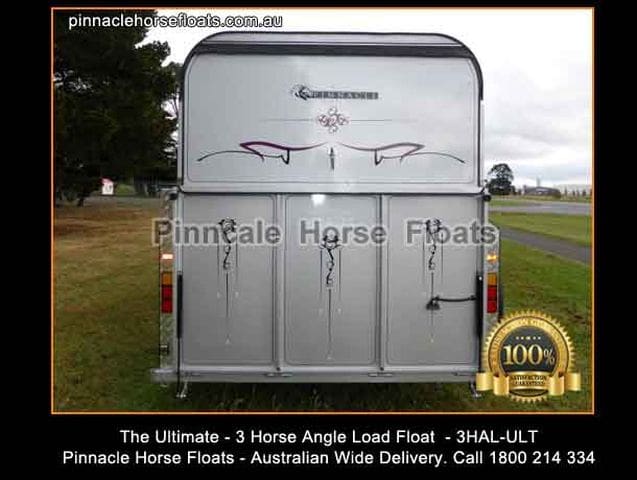

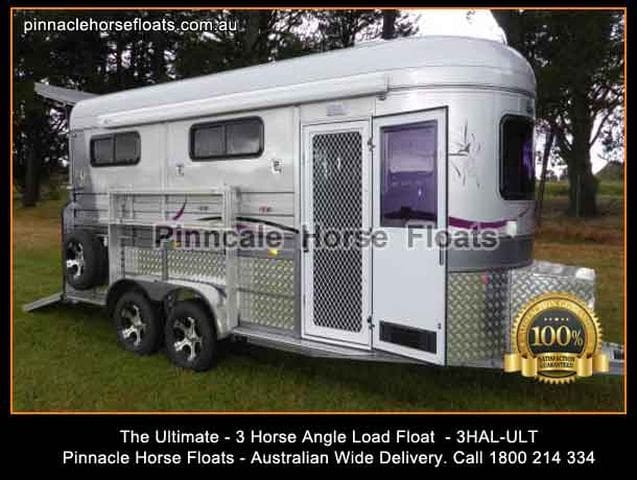

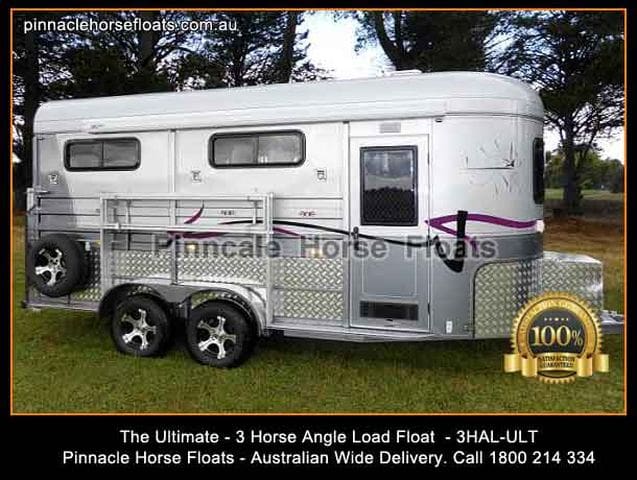

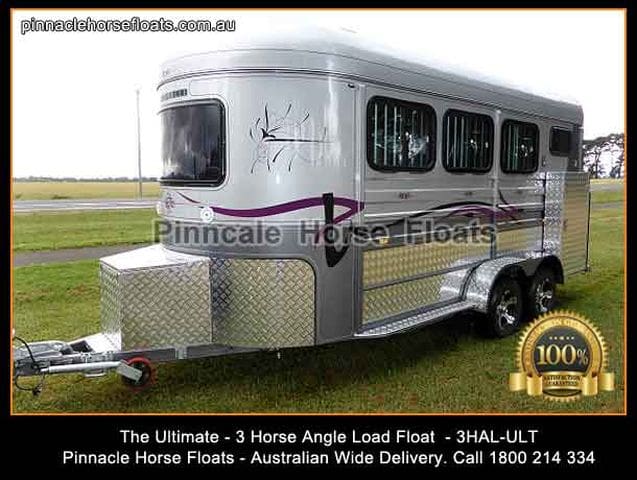

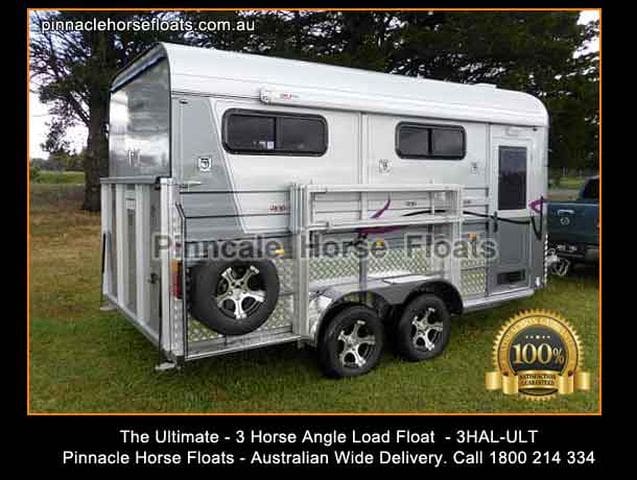

Pinnacle 3HAL-ULT 2024

Please Note- All Our Floats Come With 26mm Composite Flooring As Standard
Horse Float 3hal comes with kitchen all options except foldup bay beds, comes with Awnlux awning, hotwater unit & shower, carvan door, aluminium kitchen, double folding aluminium horse fences, 4 Horse western saddle box, full power with inside lighting & out side led lighting, urine strip & drains in horse bays, adjustable bay divider width, 12v fridge & microwave, front A frame carry box, full size side bridle box, Rubber lifted higher on walls to bay divider height, 4 wheel electric braked axles with electric breakaway system, 5 self closing drawers, wardrobe, 90 litre water tank, 12volt pump, sink & tap, outside tap. On top quality roller rocker suspension, with 4 x 8 leaf military springs, mounted to hot dipped galvanised 4mm chassis. All nuts and bolts are stainless steel, heavy duty 50mm trailer axles.

Upgrade your horse float with one of our many option extra's. "Click Here for more info"

You will not find a better built float. Australian wide delivery upon request.
Call 1800 214 334 today!

INTERIOR & EXTERIOR

• 240 volt built in fridge and microwave
• 12/240v Fridge

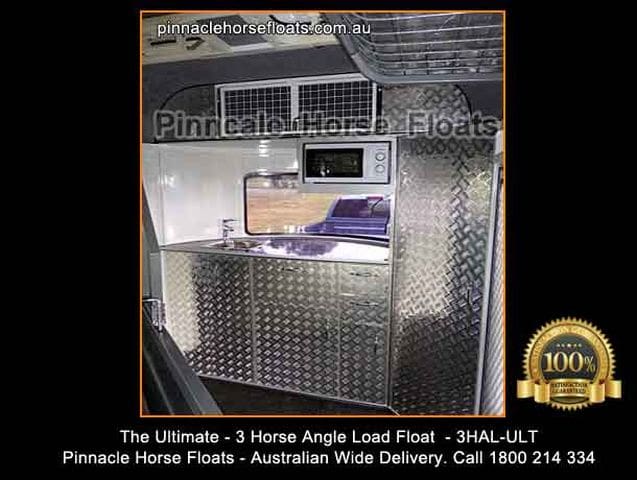

• Aluminium kitchen
• Double folding aluminium horse fences
• 4 Horse western saddle box
• Front Wardrobe & Drawers
• Hot water Shower At Rear

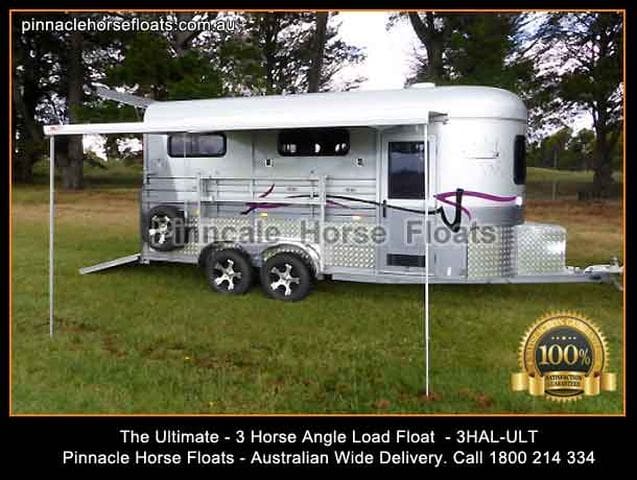

• Awnilux Awning
• Large Bridle Box
• Front A Frame Carry Box
• Full power including electronic charger, battery & 240v powerpoints
• Sink & Tap and Outside Tap on Drawbar
• Kitchen with 5 self closing drawers and wardrobe
• Drawbar checker plate 1.2mm
• Floor rubber matting - 10mm
• 26mm Composite Flooring
• Horse protection frame - fully padded
• Rear door hitches - 6mm copper hinges
• Rubber matting for horse door - 28mm ribbed rubber matting
• Rubber matting inner side panels - 10mm rubber matting

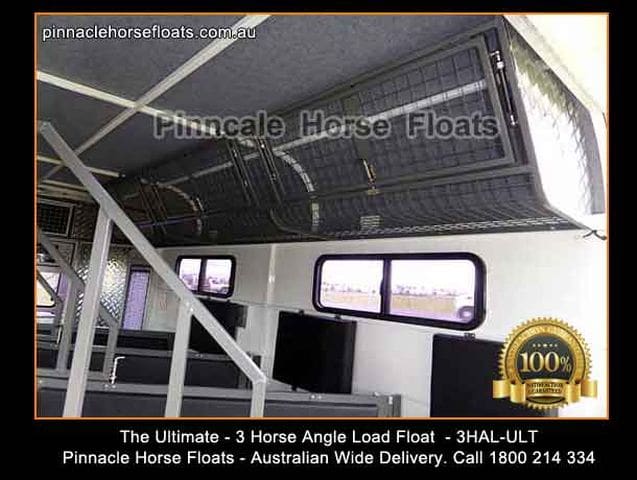

• Rug Rack Located at front of float
• Side horse rings x 6
• Please note does not come with pin stripng as pictured above

WINDOWS & DOORS

• Front window 1 x 1220 x 610
• Roof fully moulded

WHEELS & TYRES

• Heavy duty 18R14c light truck tyre
• Wheels 14" alloy rims

AXLES & SUSPENSION

• Axles solid 2 x 50 x 50 RHS, 4 wheel electric braked axle
• Brakes - full twin axle electric brakes with "Brake Away System"
• Nuts and Bolts - all stainless steel
• Suspension - 8 leaf roller rocker tandem spring axles

CHASSIS & FRAME

• Body Panels- Galvanised 1.2mm
• Double Dipped Galvanised RHS 4mm Chassis
• Frame Double Dipped RHS 2.5mm

CHASSIS & FRAME

• Rear lights - L.E.D
• Retro reflectors x 8 units
• Side lights x 4 units
• Trailer Plug - square seven pin

DIMENSIONS (L x W x H)

• Size Of Bays - 245cm Long x 80cm Wide
• Size Of Ramp Door - 2020 x 1210
• Size Of Side Door - 1755 x 615
• Body Dimensions - 5075 x 1980 x 2230
• Inner Dimensions - 5180 x 1930 x 2155
• Internal Height - 2200mm
• Overall Dimensions - 6075 x 2280 x 2500
• Size Of Side Door - 1755 x 615

WEIGHT

• Gross - 3500kg
• Tare - 1950kg
